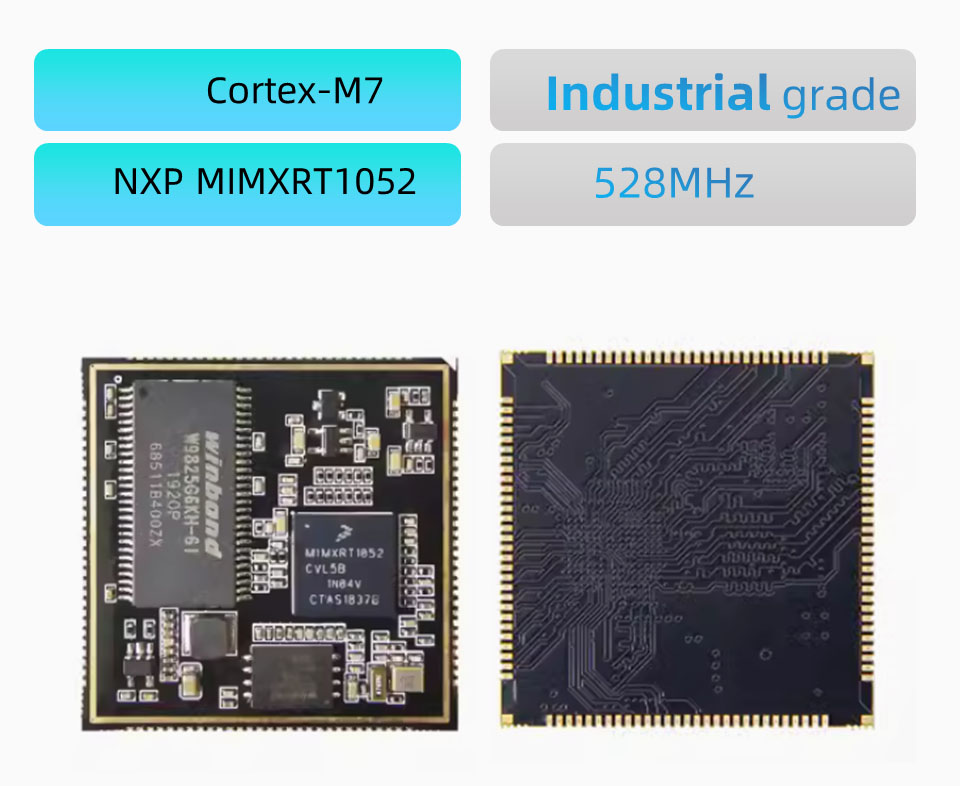

● Hoc RT1052 S2 Core Board est disposito fundatur in NXP mimxrt1052cvl5b processus.
● et components de toto tabulas fiunt ex industriae-gradus materiae.

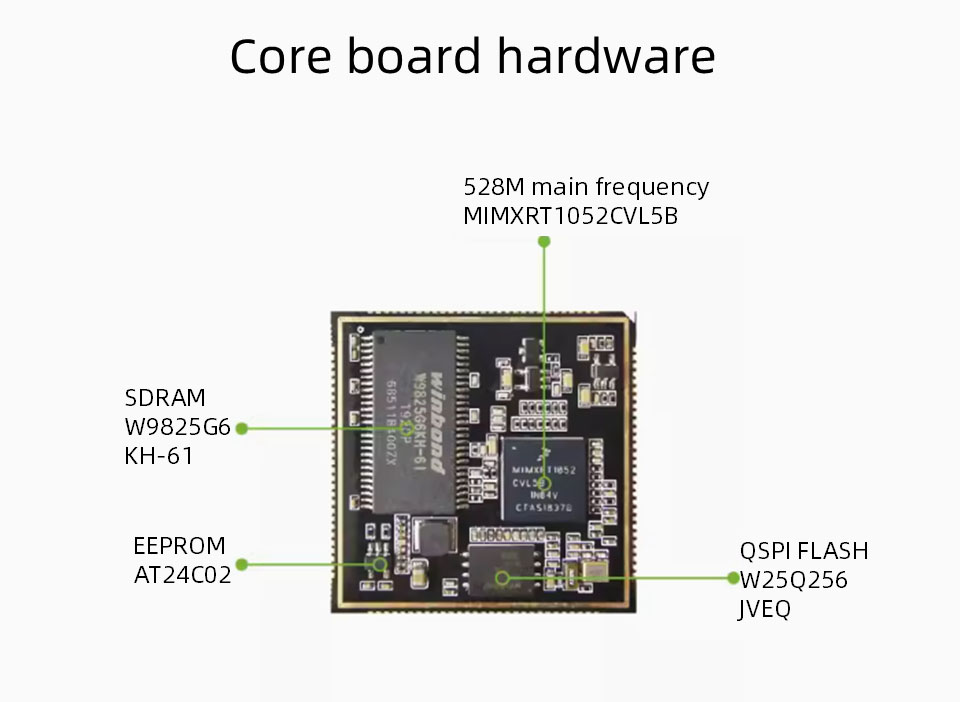

● Hardware opibus in core tabula include
● 32MB SDRAM, 32MB nec mico, 256b EEPROM.
● ad PCB adoptat a VI-layer nigrum immersionem aurum consilio, cum altiore magnitudine XXXVIII * 38mm, summa CXVI paxillos et pin 1.0mm. Nisi semc bus, reliqua X paxillos chip omnes duci.
Pelagus chip: Mimxrt1052cvl5b, cortex-M7 core, principalis frequency 528mhz
SDRAM: 2MB, TSSOp Package, Brand Winbond, Industrial Grade
Flash: 32MB, Wson8 Package, notam Winbond, Industrial Grade
EEPROM: at24c02 256b
Ethernet PHY: Nihil
PCB Size: XXXVIII 38mm
Vox copia: 3.3v
Clypeus Cover: No Cover
GPio: CXVI paxillos, 1.0mm ACUS spacing, nisi semc bus, omnes I0 sunt duci
Operating temperatus: -40 ~ LXXXV ° C, Industrial Grade
● LCD: I Channel
● USB, II channels, cum summus celeritate phia
● SDio: II channels
● I iv, IV
● Spi: IV
● uart: VIII
● Sai: III
● ADC: II (XVI channels se), 12bit
● PWM: IV
● JTag: I Channel
● SPDIF, II channels
● can: II
● Nota: quod supra data potest reddi, placere ad core tabula Pin Description ut referat consilium
Note: De tabula potest customized cum minimum ordine D
